01. Dynamic Multi-Role Administration Hub

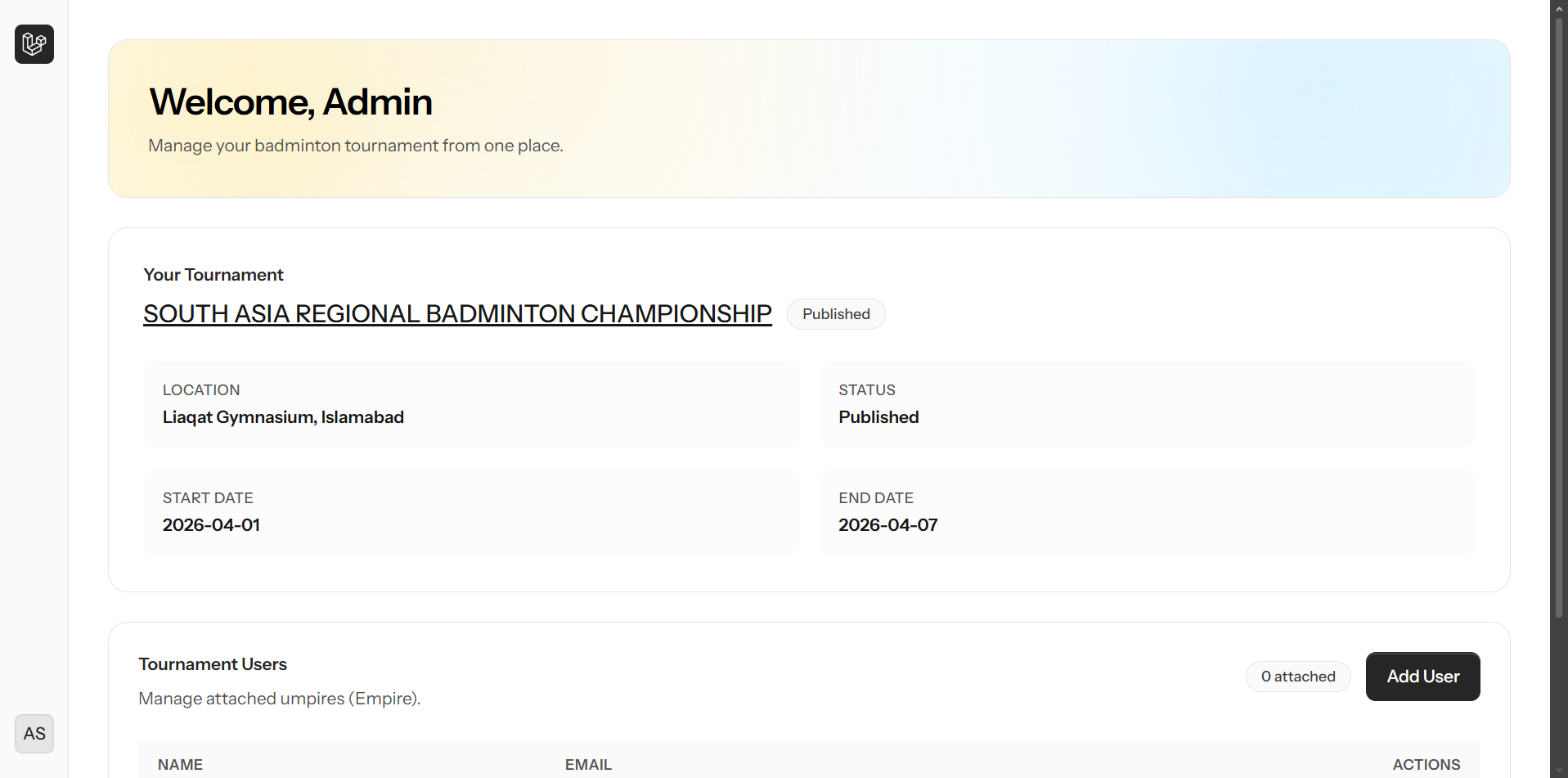

Authenticated tournament control panel detailing layout state parameters for the South Asia Regional Championship.
Managing high-profile federation athletic tournaments requires strict backend data protection combined with completely open, fast lookup routes for public audiences. CourtMaster Pro solves this balance by building custom internal routing tables directly into Laravel Fortify.
The architecture enforces strict role separation. While unauthenticated public crowds access clean, read-only "Live Hub" endpoints to watch real-time bracket draws and score lines without needing a system profile, federation administrators use isolated backend panels protected by mandatory **Two-Factor Authentication (2FA)** to coordinate official pairings, manage attached umpires, and process structural adjustments safely.
02. Algorithmic Seeding and Event Categories

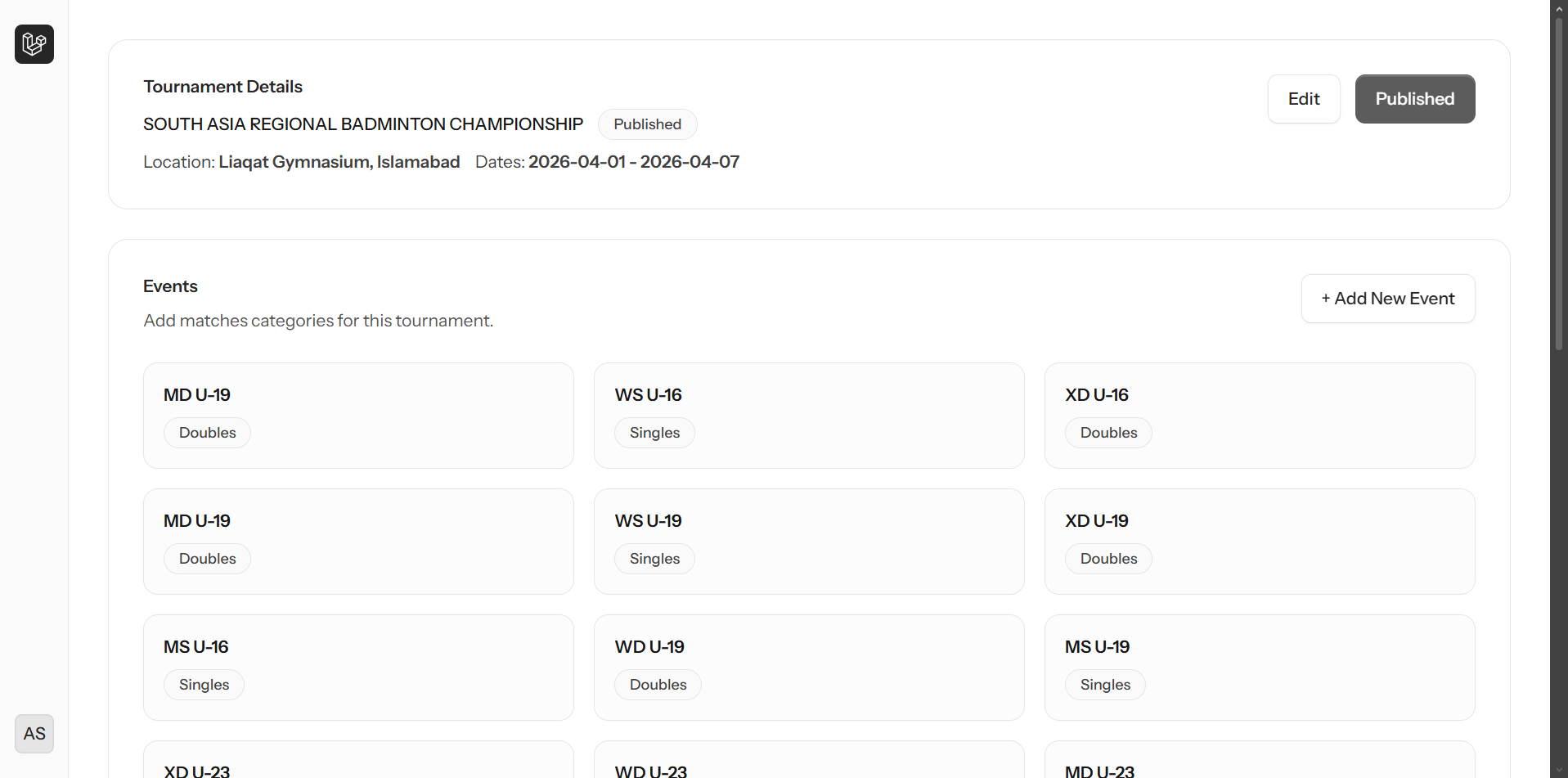

Event configuration tree supporting complex class variants (Singles, Doubles, Team Ties) mapping down across automated standard brackets.
The framework supports programmatic definitions for standard sports classifications, tracking **Singles, Doubles, and complex multi-match Team Ties** (e.g., automated match grids running sequence configurations like `S1 -> D1 -> S2 -> D2 -> S3`).
To ensure total mathematical structural reliability, the stage engine relies on a programmatic rule constraint: all knockout pools must conform strictly to a base-2 rule sequence ($2^n$). This allows the platform to safely auto-compute tournament naming labels (Quarter Finals, Semi Finals, Finals) and enforce clean tie result calculations—automatically advancing matching winners to next-stage bracket nodes while flagging trailing unplayed lines as "not required" to prevent database conflicts.
03. High-Fidelity Umpire Scoring Interface

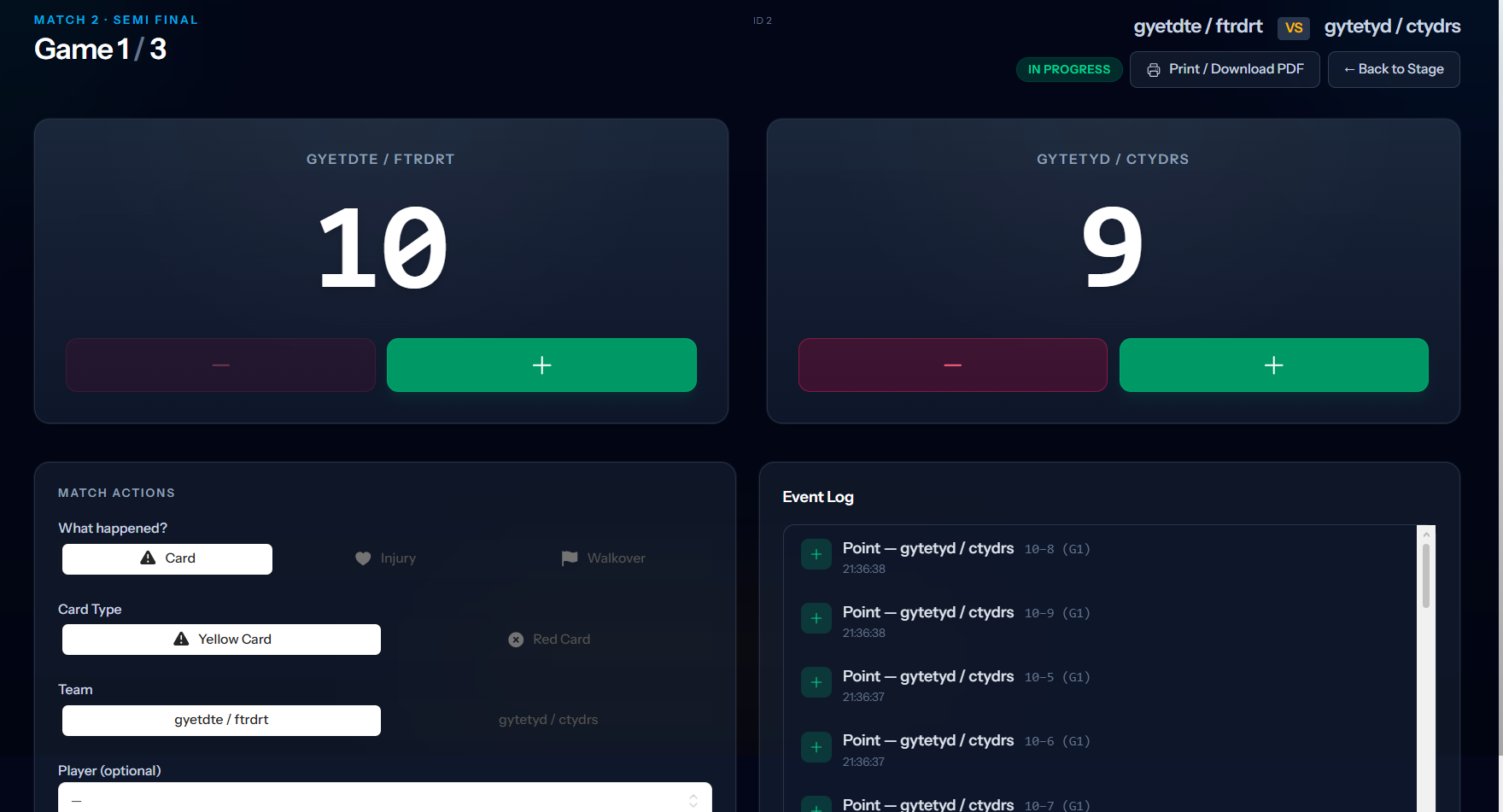

Interactive scoring interface featuring instant point logging, structural history rollbacks, and quick action event logs.
At court level, authorized referees use a dedicated, fast-response digital controller. Built on Livewire 4 and **Alpine.js**, it records every individual rally exchange instantly and broadcasts state adjustments out to stadium screens without requiring annoying manual page refreshes.
Complex Rule Checks: The state logic monitors strict international scoring limits, handling tough edge cases like standard 21-point rules, mandatory clear 2-point gaps, and absolute 30–29 sudden-death ceiling limits automatically.
Disciplinary Event Logs: Umpires trace structural timeline metrics in real time—logging crucial indicators like official disciplinary cards, clinical injury pauses, retirements, or immediate match walkovers directly inside the app database.
Bulk Back-Entry Layer: For quick offline turnarounds, a single-submission processing screen processes multiple game scores simultaneously, verifying data accuracy rules instantly before triggering dependent bracket advancements.
04. In-Venue TV Feeds & Throttled JSON APIs

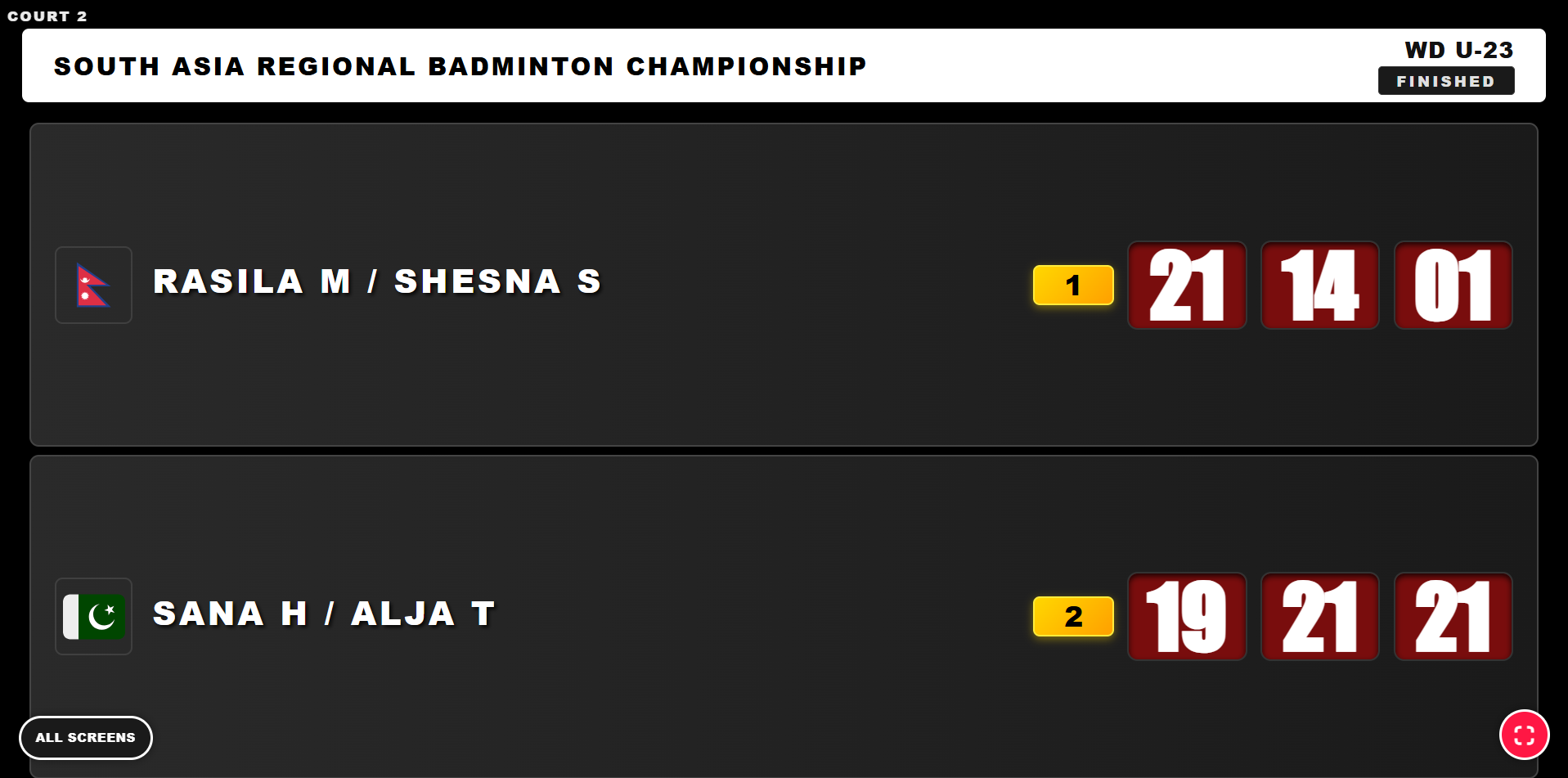

High-visibility public stadium screen displaying country flags, active sets, and real-time score indicators across regional courts.
To broadcast match progress across stadium screens and displays without risking performance degradation, I engineered isolated public endpoint arrays:
- GET /live/court/{court_id} — High-visibility interface optimized for field TVs, keeping spectators up to date via light-weight automated client-polling cycles.
- GET /api/live/court/{court_id} — A dedicated, throttled JSON API channel built to feed external media tables and scoring setups safely without creating database blocks.
05. Field Systems Deployment & Court-Side Alignment
True verification of engineering architectures does not happen inside an isolated container; it occurs live on the active arena ground. CourtMaster Pro was deployed on-site as the mission-critical tournament scoring layer under extreme real-time workloads.
Standing alongside official panel referees, tracking court management setups during international brackets.
Court-side technical coordination and real-time telemetry verification across all five active stadium arena courts.
